Sealed panel air conditioners from 750 W to 4000 W, engineered and assembled in Pakistan. They hold your control cabinet at setpoint while the floor sits at 48°C without ever opening the enclosure to dust, lint or moisture.
750 W to 4000 W sharing the same construction, so spares, service and training carry across the whole range.
Supply, installation, commissioning and breakdown response across Pakistan, with genuine parts held locally.
Every unit pressure tested, electrically verified and run-tested against its rated capacity before packing.

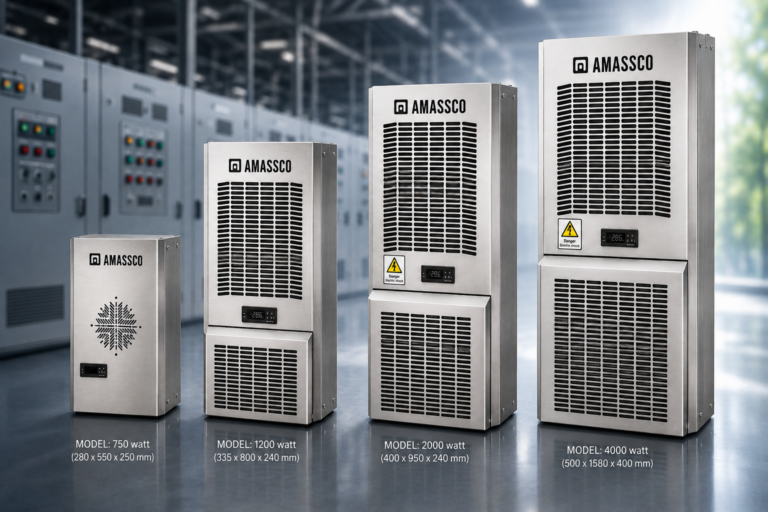

One product family, chosen by heat load rather than by cabinet fashion. Every unit shares the same construction stainless steel housing, digital thermostat control, and two fully separated air circuits so cabinet air never mixes with plant air.
Open any model for the complete specification. Dimensional drawings, airflow figures, refrigerant details and current draw are on the datasheet ask and we’ll email it the same day.

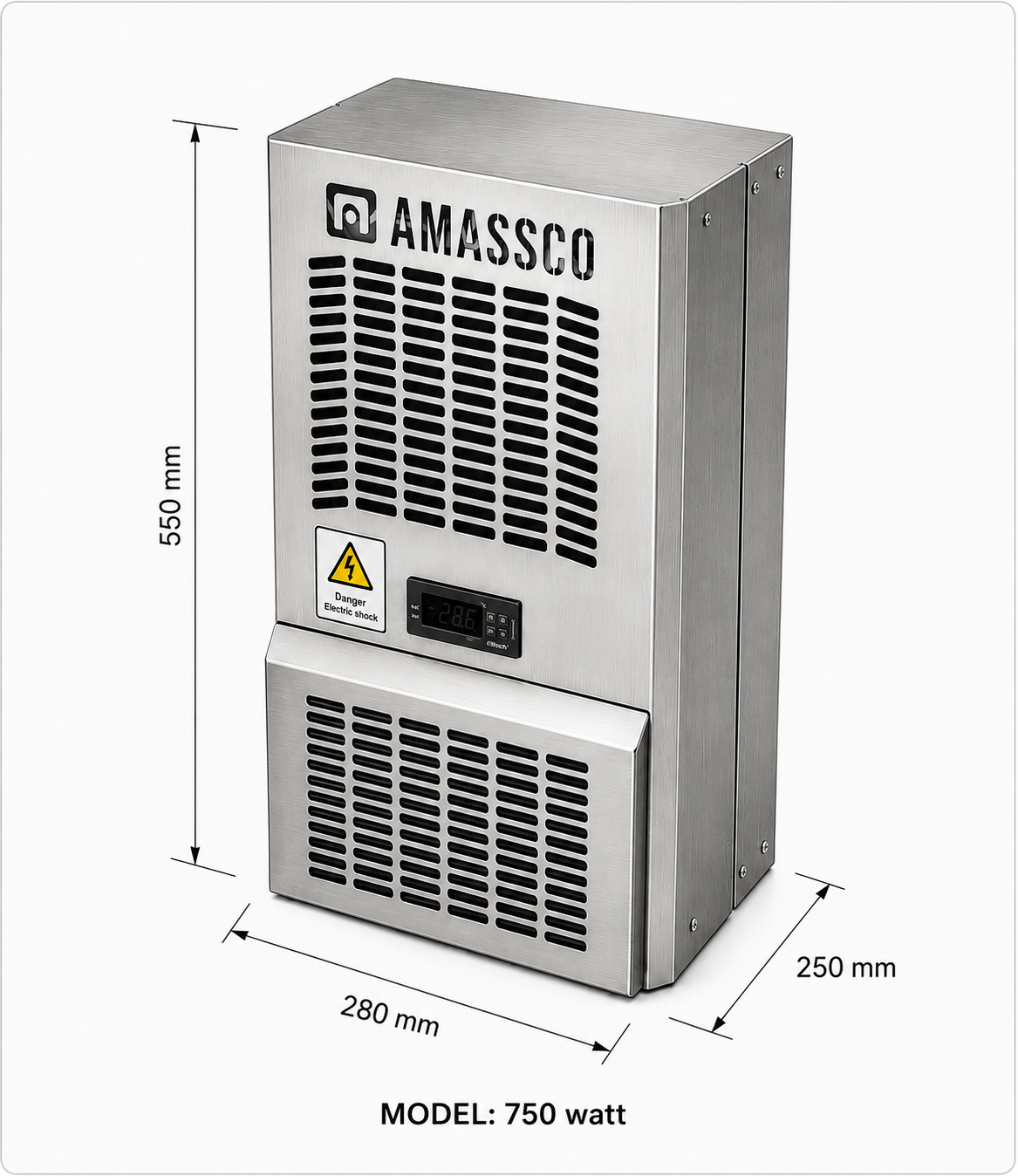

| Cooling capacity | 750 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 50 °C |
| Enclosure protection | IP56 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Supplied with | Gasket, fixings, drilling template, test certificate |

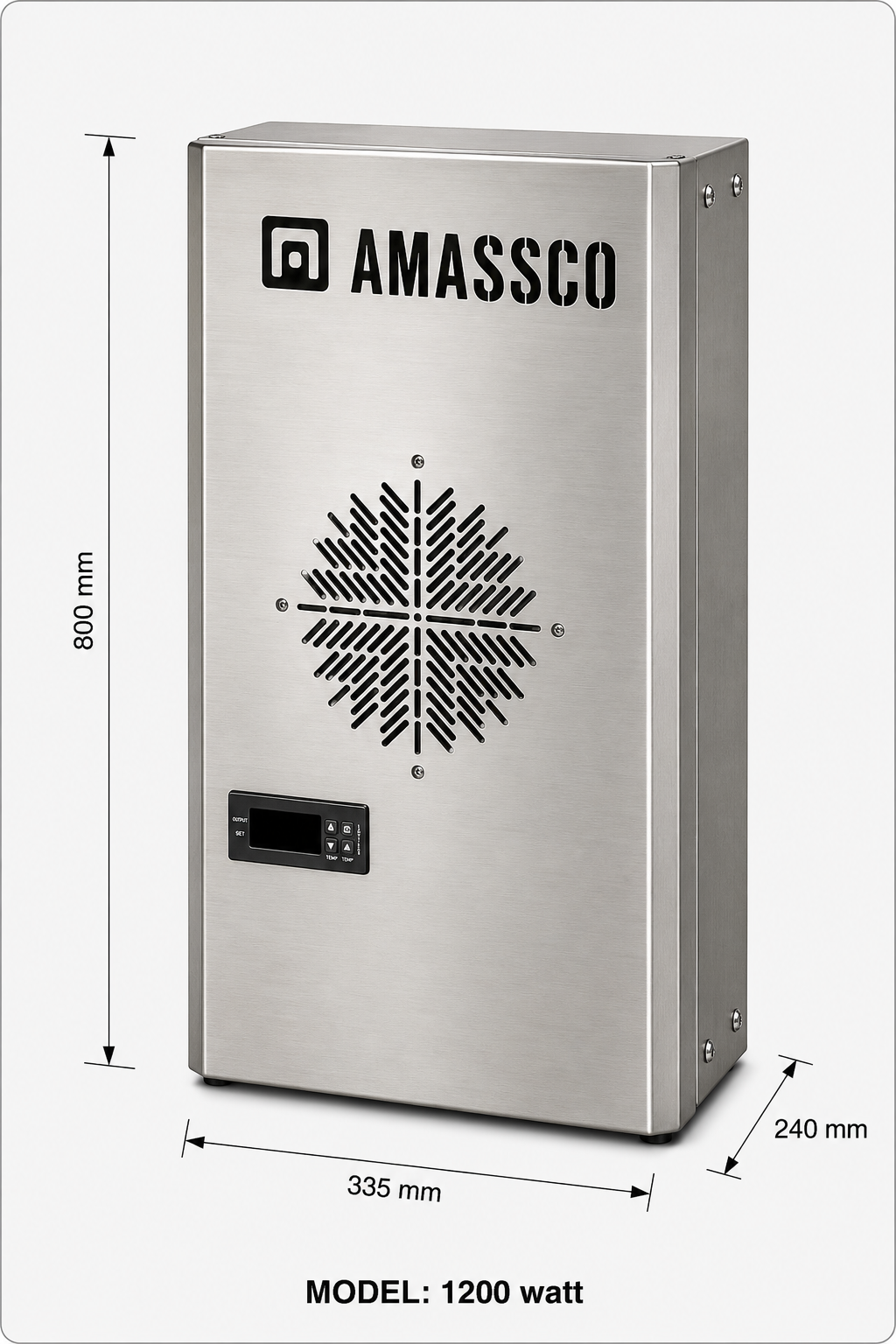

| Cooling capacity | 1200 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 50 °C |
| Enclosure protection | IP56 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Supplied with | Gasket, fixings, drilling template, test certificate |

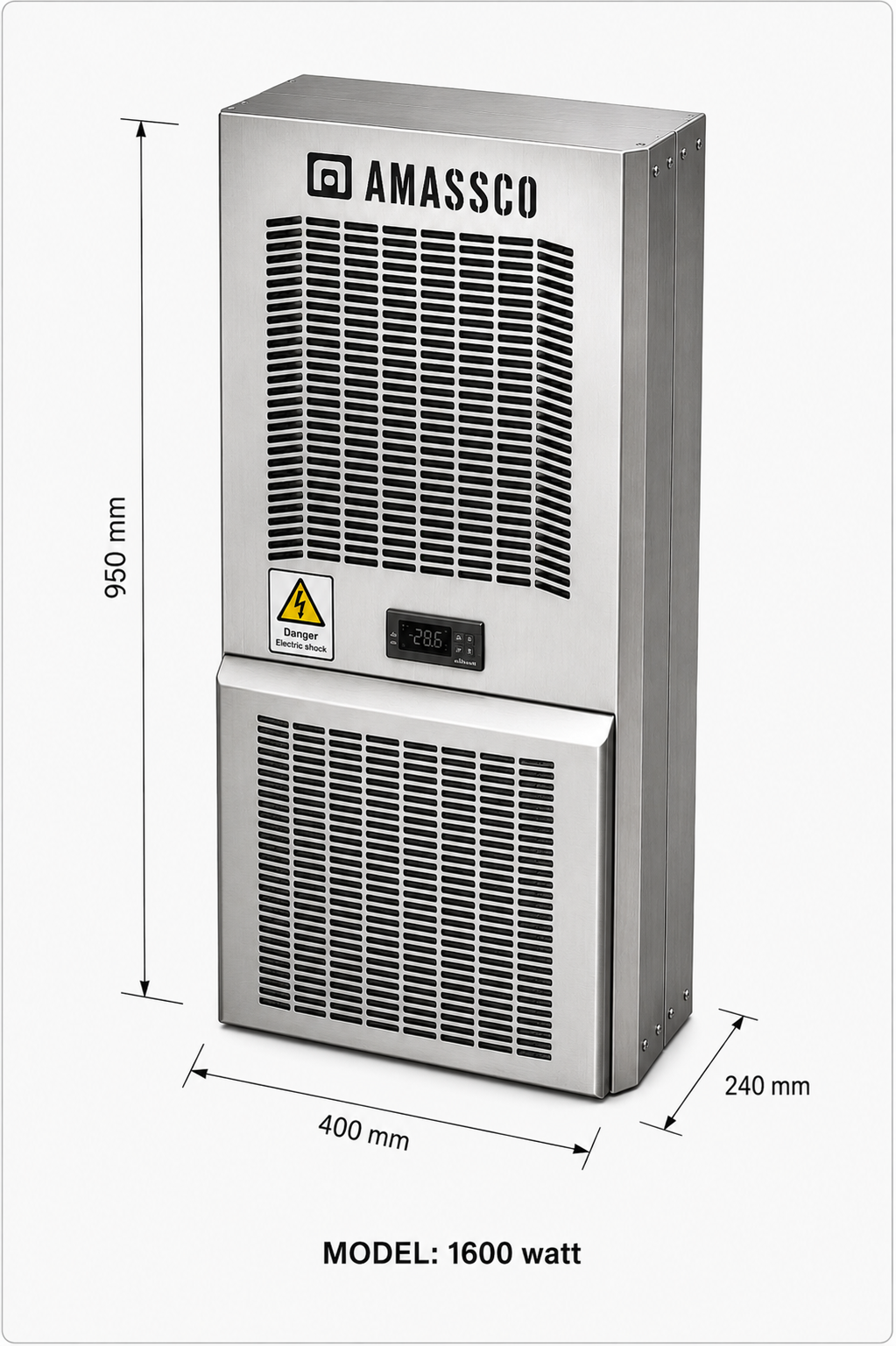

| Cooling capacity | 1600 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 65 °C |
| Enclosure protection | IP56 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Supplied with | Gasket, fixings, drilling template, test certificate |

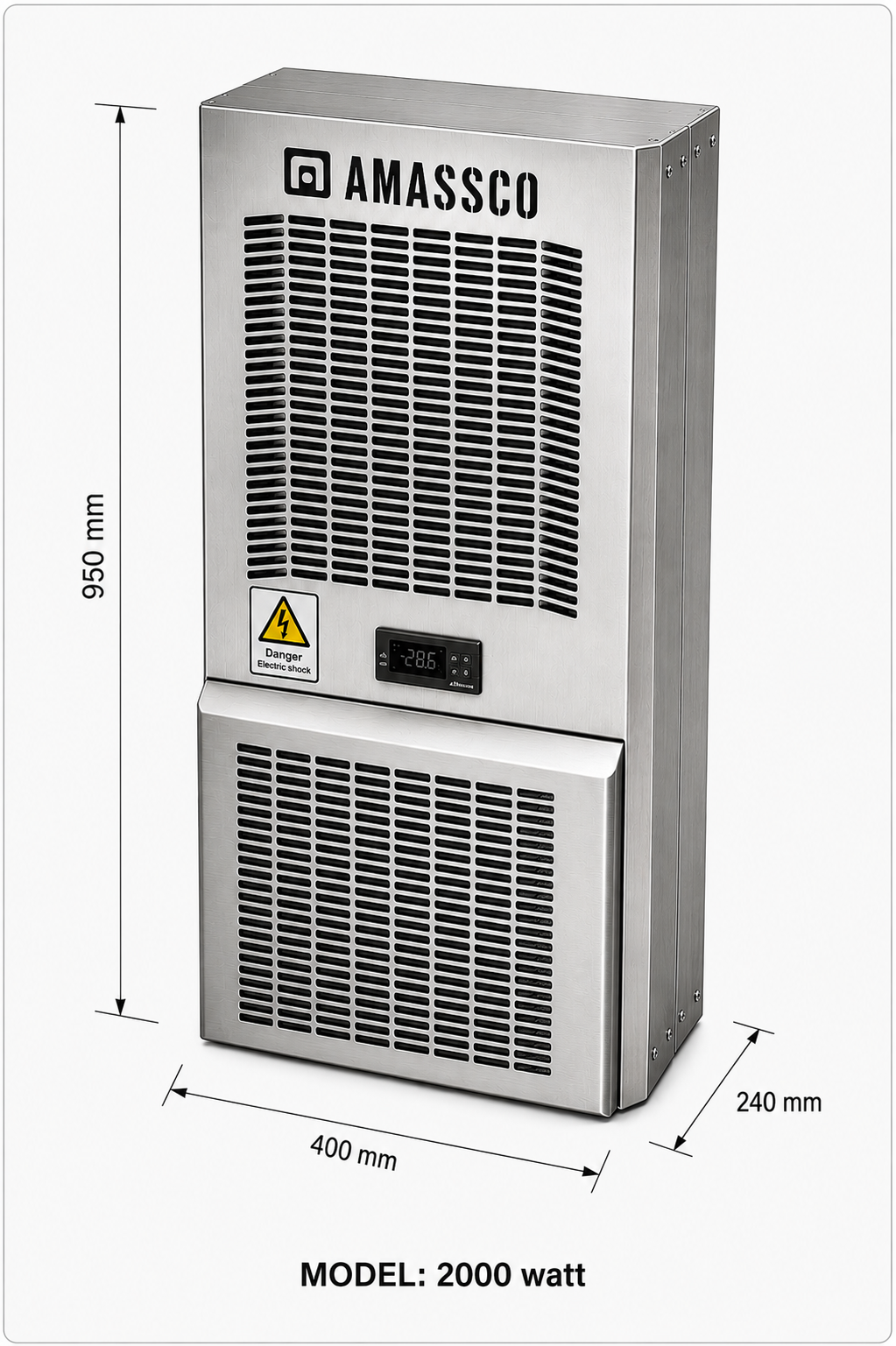

| Cooling capacity | 2000 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 60 °C |
| Enclosure protection | IP54 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Warranty | 12 months comprehensive, extendable |
| Supplied with | Gasket, fixings, drilling template, test certificate |

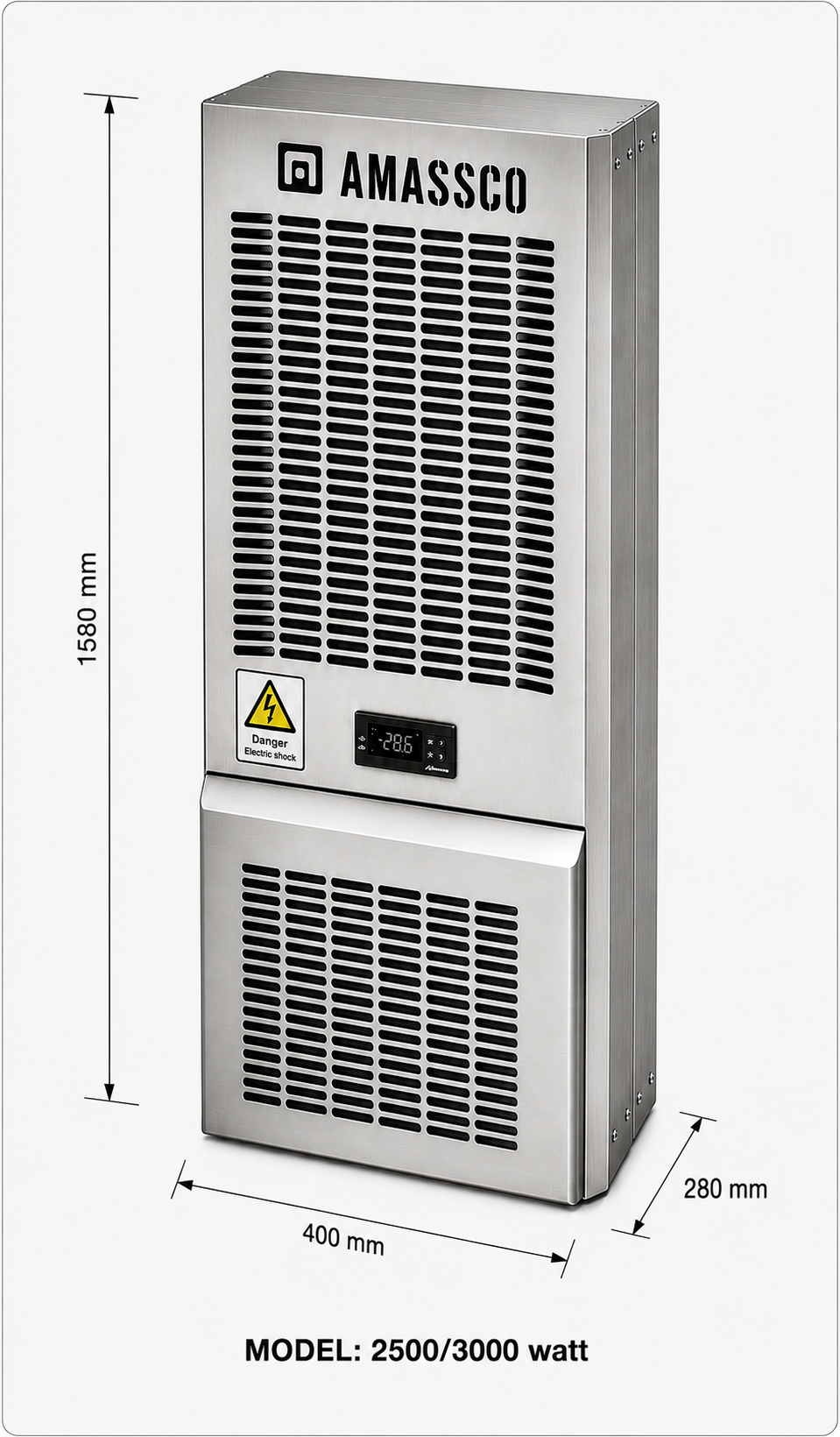

| Cooling capacity | 2500 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 50 °C |
| Enclosure protection | IP56 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Supplied with | Gasket, fixings, drilling template, test certificate |

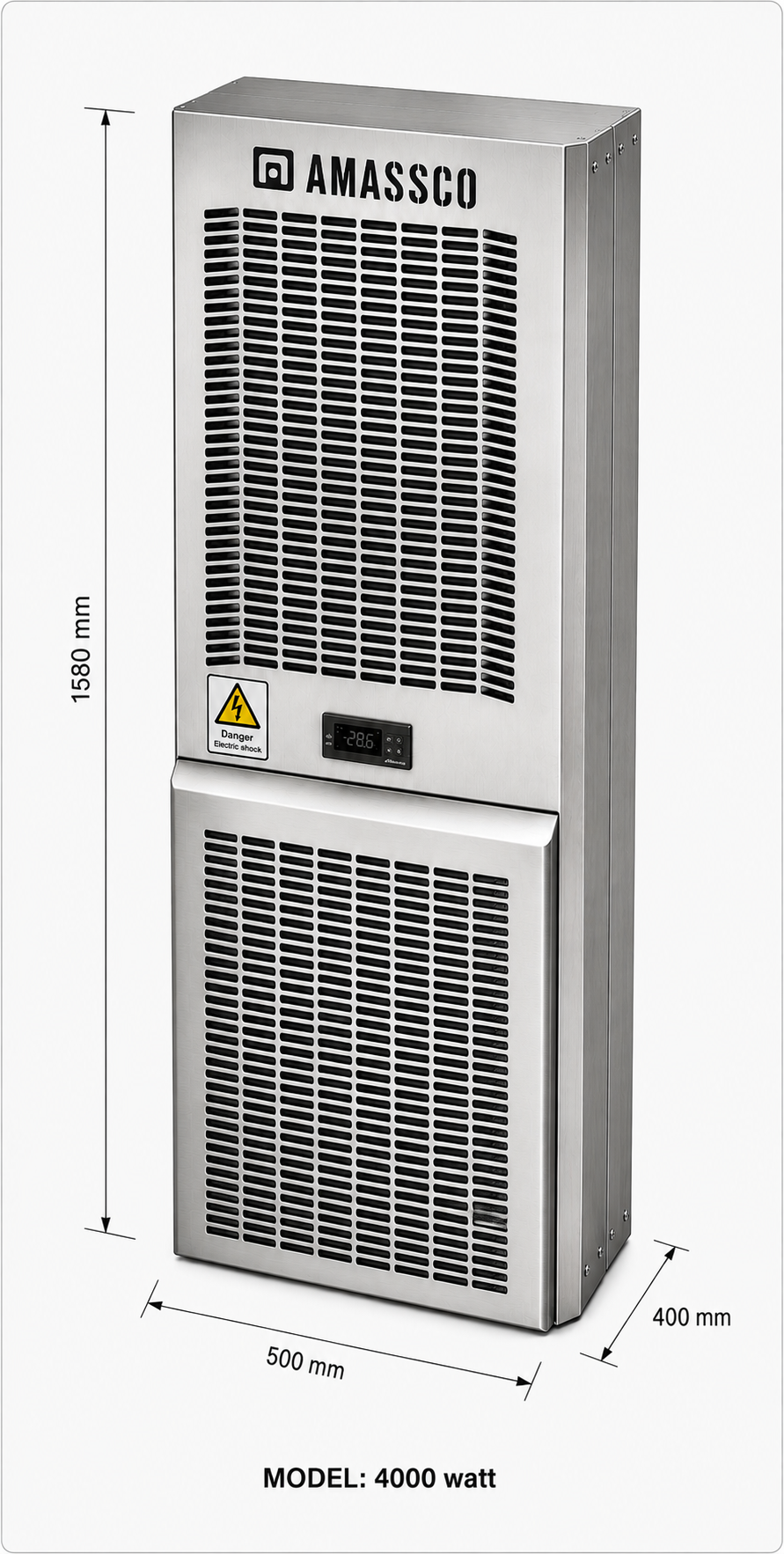

| Cooling capacity | 4000 W at standard rating conditions |
| Mounting | Wall or door mounted, external, standard cut-out |
| Housing | Stainless steel, gasketed mating face |
| Air circuits | Fully separated internal and external circuits |
| Control | Digital thermostat, adjustable setpoint and hysteresis |
| Supply | 230 V / 50 Hz, single phase |
| Maximum ambient | 50 °C |
| Enclosure protection | IP56 maintained when correctly installed |
| Condensate | Drain outlet as standard; evaporation option available |
| Supplied with | Gasket, fixings, drilling template, test certificate |
Amassco specialises in thermal management for industrial control equipment. Our panel cooling units are designed, assembled and tested in Lahore for plants running in Punjab summers, sugar-mill boiling houses and dye-house humidity.
That location is the whole point. Imported units perform well right up until something needs replacing, and then a maintenance manager is quoting a twelve-week lead time to a production director who wants the line running this shift. Building here means the spare is on a shelf a few hours away.
The cooling circuit is conventional, and deliberately so a sealed refrigeration loop with two isolated air paths. What matters is how it’s built for the conditions it has to live in.
Cotton lint, sugar dust, ammonia, wash-down water, weld smoke, iron filings. The cooling problem is the same everywhere. What we specify is not.
“The units deliver consistent cooling even in high ambient conditions, keeping our electrical panels safe and operational around the clock.”
Maintenance Manager
PepsiCo
“Quick installation and dependable after-sales service. Our facility runs continuously and the cooling has to be reliable.”
Plant Engineer
Coca-Cola
“Extremely satisfied with the performance across our production facility. A responsive technical team makes the difference.”
Maintenance Supervisor
LCB
If yours isn’t here, call us you’ll reach someone who knows the product and can speak to the fault.
Capacity depends on three things: the cabinet’s exposed surface area, the heat dissipated by everything inside it, and the maximum ambient temperature where it stands. Send us the panel drawing and the connected load, and we’ll calculate it for you and quote the matching model.
A room air conditioner cools open air. A panel AC cools a sealed enclosure through a closed internal circuit, so cabinet air is recirculated rather than exchanged with the plant. It’s built to run in dusty, oily and humid conditions and to hold an internal setpoint independent of what’s happening outside the door.
Yes — the units are rated for ambient conditions up to 60°C. Capacity does fall as ambient rises, which is exactly why sizing should be done at your worst-case summer temperature rather than at an average.
In most cases, yes. It needs a flat mounting area on the door or side, a standard cut-out, clearance for the external air path and a route for condensate. Send us photographs and dimensions and we’ll confirm before you order.
Every unit carries a 12-month comprehensive warranty, with extended cover available. We hold genuine spare parts locally and offer preventive maintenance contracts and breakdown response nationwide.
Standard models are usually available from stock or built within a short lead time. Non-standard voltages, cut-outs and special coil treatments are quoted individually — tell us the requirement and we’ll confirm a date in writing.
